image square Case Clamp
Concept Easy

The Concept Easy is the ideal assembly support for dowel construction at the case goods production as well as at drawer production.

Case Clamp - GANNOMAT Concept Easy
Presentation image info button
Features and Benefits image info button
Options image info button
Video image info button
Configurator and Contact image info button

image red line

image info button Features and Benefits

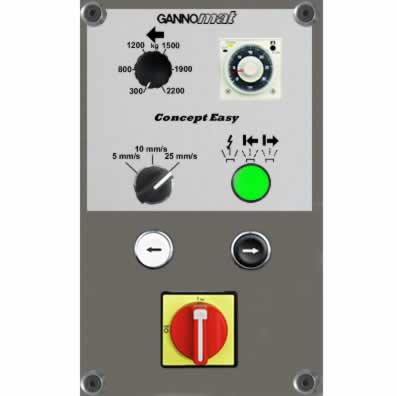

image info button Neat arrangement and ergonomically designed control
Case Clamp - GANNOMAT Concept Easy - Features and Benefits
Simple operation by 2 individual push buttons for closing/opening
Potentiometer for variable clamping force
300 - 2200 daN (kg) is standard
3 Pressing velocities and adjustment rates
5 /10 / 25 mm/sec. (with fine positioning / creep feed)
Adjustable clamping cycle time 0-30 min. (changeable to seconds and hours) with electronical automatic opening
Large green light signal to inform the machine operator about the state of the control/machine

image info button Working dimensions
Case Clamp - GANNOMAT Concept Easy - Features and Benefits
Concept Easy 170   Concept Easy 250
Width (X): 150 - 1300 mm
Height (Z): 150 - 1700 mm
Depth (Y): 150 - 700 mm

Width (X): 150 - 1300 mm
Height (Z): 150 - 2500 mm
Depth (Y): 150 - 700 mm

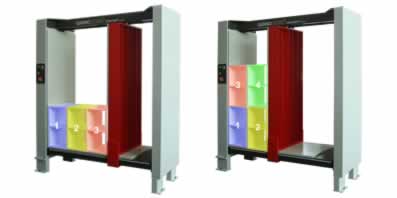

image info button Pressing of several case goods
Case Clamp - GANNOMAT Concept Easy - Features and Benefits   Several case goods or drawers can be pressed at the same time.

image info button Additonal advantages that will make work easier, reduce set-up time and increase precision, we will explain to you in a personal conversation
