Processing
of COLDMELT®-dowels |

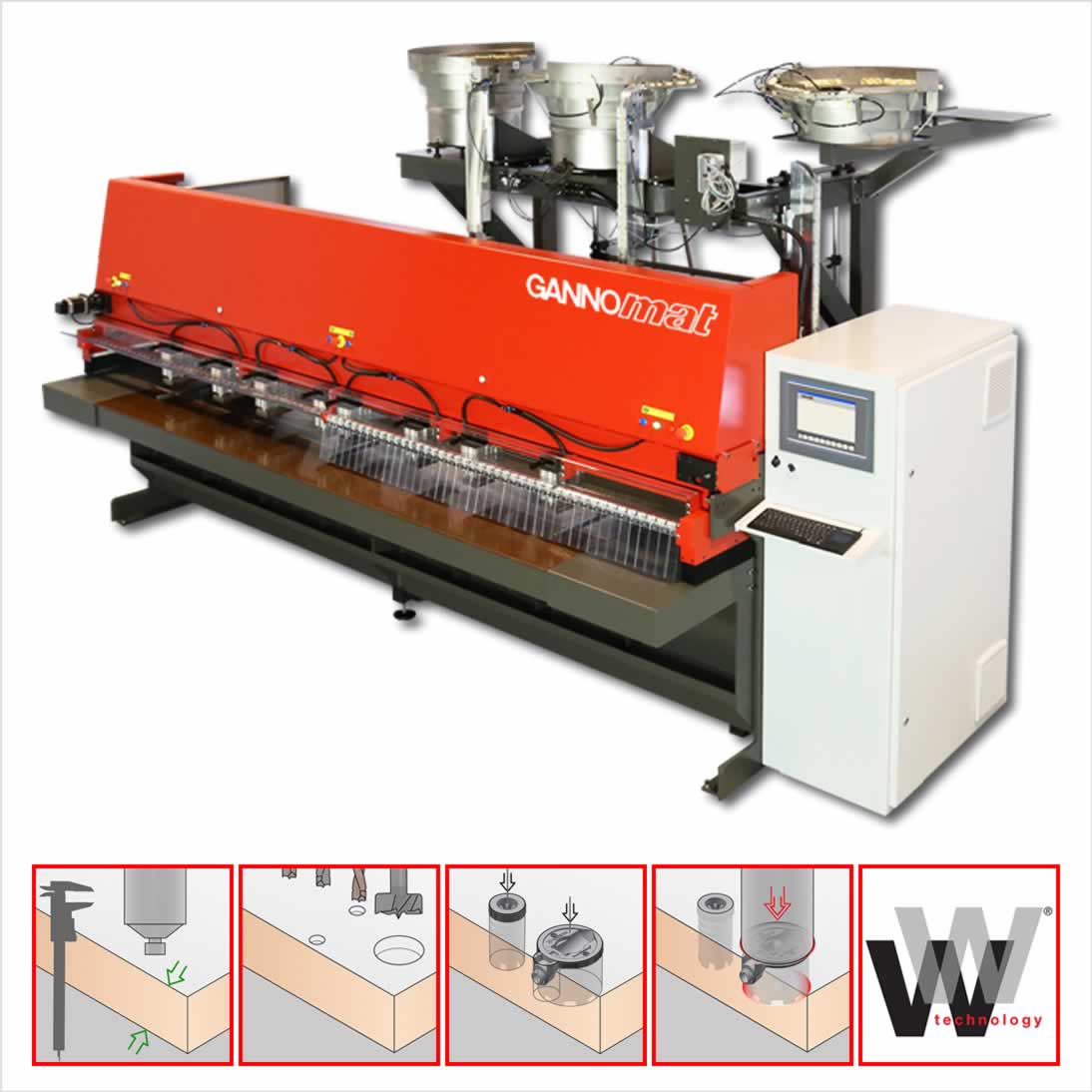

| CNC machining center for drilling,
inserting and melting of COLDMELT®-dowels. This machine is specially
developed for batch size 1 as well as large batch production. |
 |
Presentation / Features
and Benefits / Options |
| •
|
CNC machining center for
1. drilling
2. inserting of COLDMELT®-dowels
3. melting of COLDMELT®-dowels
|
| • |
Optional postprocessors, barcode,
network, and much more |
| • |
Optional additional horizontal
and vertical drilling spindles, and much more |
| • |
Optimal complement to nesting
machines |
| Greatest flexibility with a high profitability and universal application areas: |
| • |
Fitting attachment in lightweight
honeycomb panels and the similar |
| •
|
Lightweight panels with applications in the area of
- Caravan components
- Furniture parts
- Special parts
- and much more
|
| • |
Different lightweight panels can be processed |
| • |
The advantages of lightweight panels can be fully utilized |
| •
|
The application of mechanical
vibrations in the ultrasound range (20,500 Hz) sets the COLDMELT®-dowel
in motion. This means that they melt at the contact points with
the wood due to the resulting frictional heat, and and form a bond
with the porous structure of the wooden material. |
| • |
The COLDMELT®-dowels can
be inserted in only a few seconds. |
| •
|
No more waiting for adhesive
to harden - the connection can be subjected to loads after just
a few seconds. |
| •
|
COLDMELT®-dowels
for attaching chipboard screws, Euro screws and eccentric connectors. |
|
Video |
|
Note |
 |
|
Elements
of the WKT 471 are based on the patented WoodWelding® Technology
of WoodWelding SA and sublicensed from Adolf Würth GmbH &
Co. KG.
COLTMELT® is a trademark registered in the following countries:
Switzerland |
|
