CNC
Machining Center |
| CNC precision machinig center
for complete processing - Drilling, Grooving, Routing. Compact design
and high performance technology with through feed technique for cabinets,
furniture, interior design and much more. Compact - Stronger - Faster.
|
 |
Presentation |

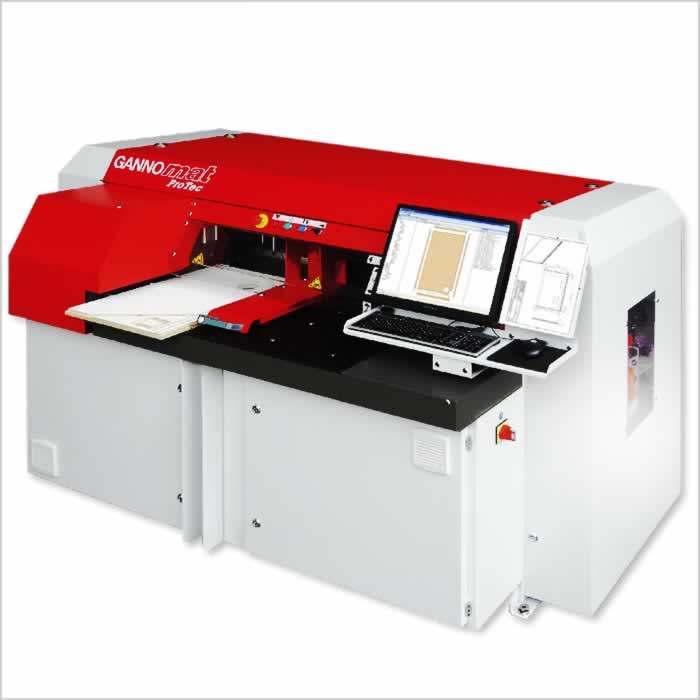

| The ProTec is a very compact CNC
center for drilling, grooving and routing. Designed for just-in-time
manufacturing as well large batch production. |
|
Short
introduction |
| • |
Small footprint requirement,
less than 3,3 m2 |
| • |
Large (1000 or 1300 x 5600 x 60
mm) and small (60 x 250 x 6 mm) workpiece dimensions |
| • |
Gentle workpiece handling by air
jets (air jet table) |
| • |
Precision through double
laser measurement and workpiece straightening |
| • |
Fast processing through
21/23 drilling spindles |
| • |
21/23 drilling spindles
for zero setting times |
| • |
Stable grooving unit till
8,3 mm saw blade width |
| • |
Strong routing unit 5,5
kW (S1), option |
| • |
Automatic tool changer for
routing unit, option |
|
New
Options |
| • |
Working width 1300 mm (instead
of standard 1000 mm) |
| • |
Lamello P-System package for routing
of Lamello P-System pockets for Clamex, Clamex Flexus, Tenso, Bisco,
Divario |
|
Introduction |
| The horizontal respectively horizontal
workpiece transport and machining from below many advantages are given
for the user, such as easy loading and unloading of very long and
very heavy workpieces. Another point is that the workpiece weight
is not distributed on one edge, but on the largest surface and the
chips can be optimally extracted downwards. |
| The workpiece is transported by
a massive and strong claw gripper. With our transport system, the
workpiece thickness is set automatically and, depending on the application,
no suction cups need to be assembled and disassembled, as with other
CNC machines, which saves you set-up times. |
| Another advantage of ProTec is
at the drilling, on the one hand by straightening the workpiece to
straighten curved plates before drilling and herewith the precision
e.g. on the case good and with the standard 21 drilling spindles all
usual drilling work can be drilled in the fastest cycle time and grooving
work is also carried out in one pass. |
| 4-sided-formatting is possible
with the Gannomat ProTec. Even more complex routing work e.g. in solid
wood can be made easily. An optional, automatic tool changer always
gets the right router tool, regardless of whether a diamond, decorative
groove or profile router tool is required. |
| Workpieces with a width of up
to 1 m (optionally 1,3 m) can be processed completely. In practice
this is very important, because herewith also corner cabinets or e.g.
tabe tops can be processed professionally. |
| Optional is the the additional
package for processing Lamello P-System furniture connectors. Herewith
the connector pockets for Lamello Clamex, Tenso, Divario and / or
Medius are routed easily and fully automatically, as well as the necessary
6 mm hole for the Clamex is made. A software extension with a macro
for the Lamello P-System for the front (3 edges) and surface (in X/Y
respectively lengthways and crossways) routing is included in the
package. |
| Through 3D graphics at the input
masks of the machinings, programming is made even easier, especially
for CNC beginners. |
| In addition to the standard air
jet table, there is the possibility of choosing an even more gentle
processing for sensitive surfaces. |
| The space required of theProTec
is only 3.3 m2, depending on the option. |
|
